OUR CNC MACHINES AND WORKFORCE



Hermle U630T – 4 axes Milling machine

Universal machine with upper compound table;

X and Y-axis in the workpiece;

Rapid traverses and feeds of up to 15 m/min;

Z-axis in the workpiece, thus constant ergonomically working height, independent of workpiece height;

Mineral casting for the machine base;

Compact structure, thus minimum space requirement;

High internal rigidity;

The spindle slide is firmly guided over the whole traverse on a compound rest;

Variable main spindle motor with two-stage gearbox;

Collision protection in the milling spindle;

Vertical milling head can be swiveled by 90°, allowing five-sided machining of workpieces;

Automatic tool change in pick-up mode.

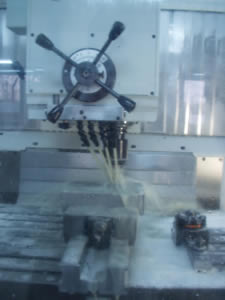

Hermle U630T - 4 axes Milling machine


Technical Data


U 630 T

Traverse X

630/875mm

Traverse Y

500 mm

Traverse Z

500 mm

Main power at 40% ED

12 kW

Speed

20-7000 rpm

Rapid mov. of X-Y-Z

15 m/min

Control unit

TNC 426

Clamping table*

900x528 mm

Load cap. max.

400 kg

NC-rotary table*

Ø 500 mm

Load cap. max.

300 kg

Tool changer only for model T

16 pockets

Hermle C 800V

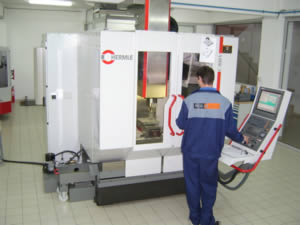

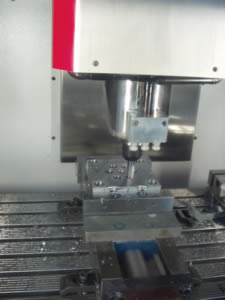

Hermle C 800V – 3 axes Milling Machine

Hermle C 800V - 3 axes Milling Machine

Hermle C 800V - 3 axes Milling Machine

Technical Data


C 800 V

Traverse X

800 mm

Traverse Y

600 mm

Traverse Z

500 mm

Main power at 40% ED

25 kW

Speed range (rpm)

16000

Rapid movement of all axes

35 m/min

Chip-to-chip time

6.0 s

Clamping table

1000x560 mm

Loading height

900 mm

Load capacity max.

1500

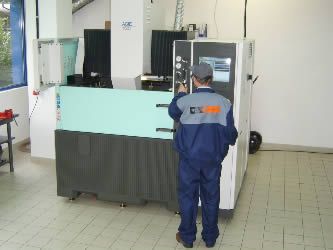

Agie Advance 4 - 3D Electric Discharge Machine

Technical Data

Maximum workpiece dimensions (L x W x H):

1100x750x370 mm

Axes travel (X x Y x Z):

700x500x350 mm

Permissible wokpiece weight:

2000 kg

Permissible electrode weight:

80 kg

Table to quill distance:

165-515 mm

C axis:

integrated

Working current:

64 A, 128 A

Best roughness:

Ra= 0.2 µm/AGIEBRIL

Control, servo controlled axis:

X, Y, Z, C axis

Studer S21 lean CNC Cylindrical Grinding Machine

Technical Data

Centre distance

400mm (15.7 )

Centre height

125mm (4.9 )

Max. travel of X, Y, Z axex

483 mm , 295mm, 180mm

Speed

0.001–10000 mm/min

Resolution

0.0001mm

Power max.

20 kVA

Grinding wheel Øx width x bore

400 x 40 x 127mm

Peripheral speed

up to 50 m/s

Surface straightness

400 mm 0.002/15.7, 0.000,08

Dimensions Length Width Height Weight

2000 2200 2000 4000 kg

Control

Fanuc 21i

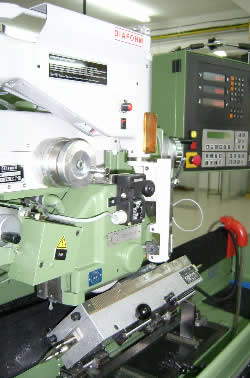

Jung JF 420 Surface and Profile Grinding Machine

Technical Data

Working area

Grinding length x grinding width

mm

400 x 200



Size of magnet max.

mm

400 x 150


Table size

mm

400 x 150


Grinding wheel dimensions max.

mm

225 x 25 x 51


Distance table/spindle center

mm

400

Table longitudinal feed

Reciprocating

m/min

1 – 24


Creep feed

mm/min

8 – 200

Spindle drive

Speed

rpm

900 – 4500


Power output

kW

2,5
